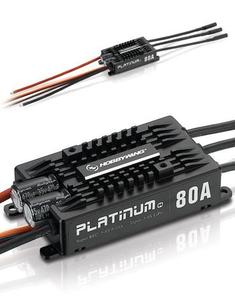

Platinum PRO 80A V4 ESC, for Premium Aircraft
Features:
- Separate Programming Port: for connecting LCD Program Box/WIFI Express
- Throttle Signal Wires: White, BEC Output Wires: Red & Black and Red&Brown
- RPM Signal Transmission Wires: Yelow
- Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
- Output Wires: Black-12AWG-100mm*3
- Output connector: 4.0mm Gold Connectors (Female)
Specifications:
- Application: 450- 500 Class Helicopter
- Input Voltage: 3-6S Lipo
- Cont./Peak Current (10s): 80A/100A
- BEC: Switch Mode:5-8V,10A
- Size: 84.3x38.2x20.4mm
- Weight: 97g / 3.42oz
