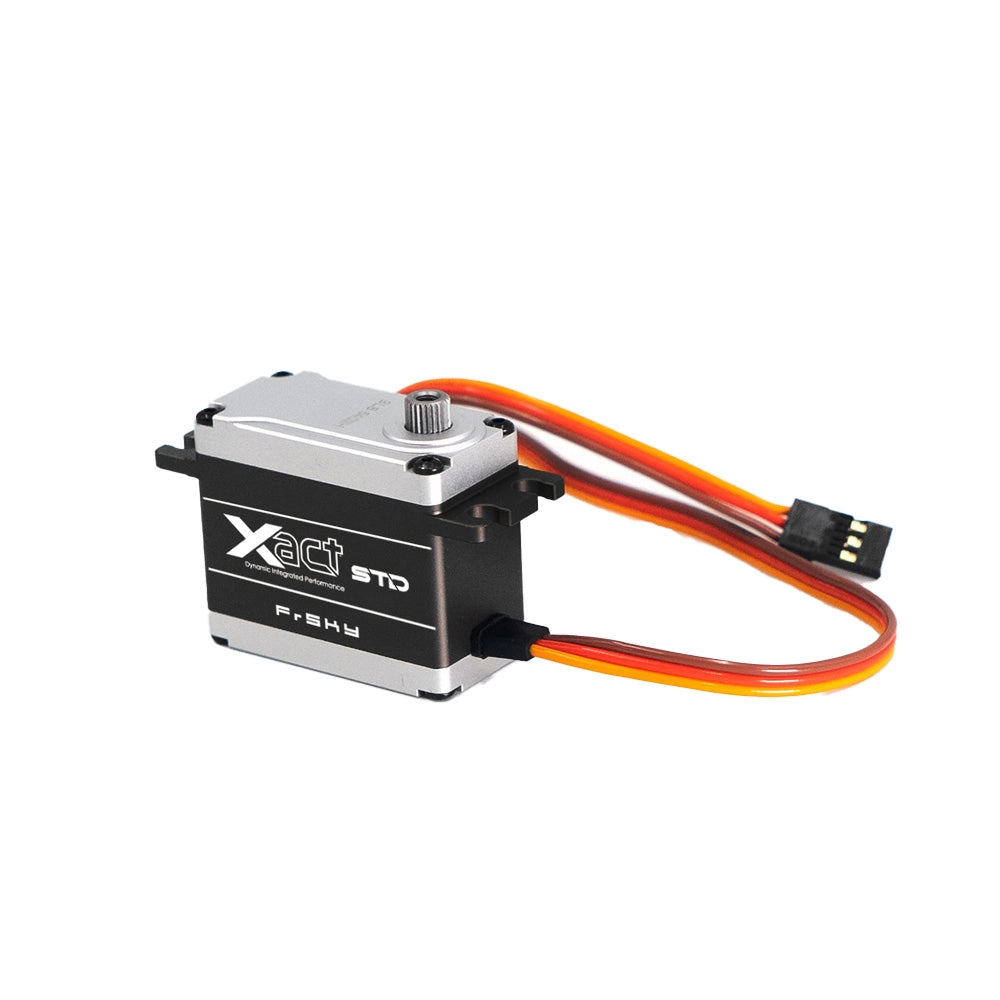

FrSky Xact STD Brushless 5400 Series Servo - BLS5405H

The FrSky Xact 5400 Series Servos are engineered for RC enthusiasts who demand precision, durability, and advanced telemetry capabilities. Available in both brushless and coreless motor configurations, these high-voltage servos are designed to deliver exceptional performance across a variety of RC applications.

🔧 Key Features

• High-Voltage Operation:Supports up to 8.4V, providing robust torque and speed for demanding applications.

• Durable Construction:Features a fully CNC-machined aluminum protective case and metal gears for enhanced durability.

• Advanced Telemetry Support:Compatible with FBUS, SBUS, and PWM protocols, allowing real-time monitoring of current, voltage, and temperature via FBUS-capable receivers or flight controllers.

• Customizable Servo Travel:Offers configurable servo travel angles of 90°, 120°, or 180°, adjustable through the ETHOS Xact configuration tool or the Freelink app.

• Precision Components:Equipped with dual precision ball bearings and a Hall sensor for accurate positioning and smooth operation.

• Firmware Upgradable:Supports firmware updates to ensure optimal performance and compatibility with future systems.

📐 Specifications

• Dimensions 40 × 20 × 39 m

• Weight 72g

• Horn Spline  25T

• Operating Voltage Range 4.8V – 8.V

• Max Reflash Rate 333 Hz

Whether you're upgrading your RC plane, helicopter, or surface vehicle, the FrSky Xact 5400 Series Servos provide the reliability and performance needed for high-precision contro.
